The TSMP Series is engineered for variable viscosity, multiphase, and gas-entrained industrial fluid transfer. Ideal for refinery, marine, chemical, food processing, pharmaceutical, and sanitary systems requiring stable flow, low NPSH performance, and adaptive hydraulic efficiency under changing process conditions.

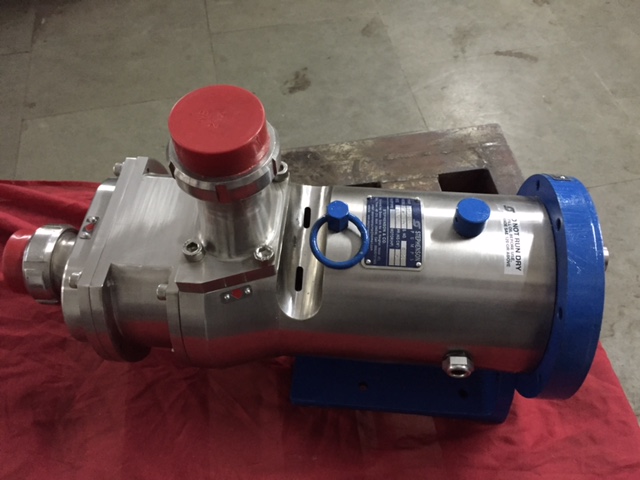

The TSMP Series Twin Screw Pump is engineered for industrial applications where fluid behavior changes continuously during operation and process stability cannot depend on fixed operating conditions alone. Designed for multiphase transfer, fluctuating viscosity systems, entrained gas movement, and suspended-solid media handling, the TSMP Series delivers stable axial flow under conditions where conventional positive displacement and centrifugal pumps frequently lose hydraulic efficiency.
Industrial process systems in refinery, chemical, marine, food processing, pharmaceutical, and heavy manufacturing environments rarely operate under perfectly stable fluid characteristics. Temperature variation, startup viscosity spikes, vapor formation, product density shifts, and solids concentration changes create unstable operating conditions that directly affect pumping efficiency and long-term equipment reliability. The TSMP Series is specifically developed to maintain volumetric stability across these variable process environments.
Its synchronized non-contact screw geometry minimizes shear, reduces pulsation, improves suction performance, and allows controlled transfer of delicate or highly viscous fluids without excessive turbulence or mechanical degradation. The TSMP Series is widely used in applications requiring operational adaptability, process continuity, and long-duration industrial reliability.
| Hydraulic Characteristic | TSMP Series Engineering Behavior | Process-Level Advantage |
|---|---|---|
| Axial Fluid Movement | Progressive cavity transfer | Stable non-pulsating flow |
| Screw Synchronization | Non-contact timed rotation | Reduced internal wear |
| Flow Mechanism | Positive displacement transfer | Consistent volumetric efficiency |
| Pressure Development | Controlled internal compression | Reduced hydraulic shock |
| Suction Stability | Low NPSH requirement | Improved inlet reliability |
| Fluid Adaptability | Handles changing density conditions | Stable process continuity |
| Shear Profile | Low turbulence movement | Reduced product degradation |
| Gas Handling | Moderate vapor compatibility | Improved multiphase transfer |
Industrial transfer systems frequently experience changing operating conditions during startup, shutdown, thermal cycling, batch transfer, and process fluctuation. Conventional pumping technologies often lose efficiency because they are optimized for narrow operating windows rather than dynamic process behavior.
The TSMP Series is engineered specifically for adaptive process performance. Its synchronized screw geometry maintains continuous axial fluid movement even when viscosity changes dramatically between cold startup and operational temperature conditions. The low NPSH requirement improves suction stability during fluctuating inlet pressure environments while reducing cavitation risk in long pipeline systems.
In multiphase applications, entrained gases and vapor pockets can destabilize flow inside conventional pumps. The TSMP Series maintains smoother hydraulic transfer under mixed-density conditions due to its progressive cavity movement and controlled volumetric displacement behavior.
| Variable Process Condition | Common Operational Problem | TSMP Series Response |
|---|---|---|
| Cold Startup Viscosity Spike | Motor overload and unstable flow | Adaptive screw displacement |
| Thermal Density Variation | Volumetric inconsistency | Stable axial transfer |
| Entrained Vapor Formation | Cavitation and suction instability | Controlled multiphase movement |
| Long Suction Pipelines | Inlet pressure collapse | Low NPSH hydraulic profile |
| Batch Process Variation | Pulsation and flow fluctuation | Continuous volumetric control |
| Fluctuating Solids Concentration | Internal scoring and wear | Non-contact screw operation |
| Variable RPM Operation | Pressure instability | Smooth displacement consistency |
| Technical Parameter | TSMP Industrial Configuration | TSMP Hygienic Configuration | Engineering Impact |
|---|---|---|---|
| Maximum Flow Capacity | 550 m³/hr | 320 m³/hr | Supports both bulk industrial and sanitary transfer systems |
| Differential Pressure Range | Up to 25 bar | Up to 16 bar | Stable transfer under high process resistance |
| Maximum Operating Temperature | 200°C | 140°C | Thermal process adaptability |
| Minimum Operating Temperature | -20°C | 5°C | Cold fluid handling capability |
| Viscosity Handling Range | 1 cSt – 200,000 cSt | 10 cSt – 120,000 cSt | Wide fluid adaptability |
| Solids Handling Capability | Up to 8 mm | Up to 5 mm | Suspended particulate compatibility |
| Maximum Self-Priming Vacuum | 0.08 MPa | 0.06 MPa | Improved suction reliability |
| Rotational Speed Range | 100–1450 RPM | 100–900 RPM | Flexible process control |
| Flow Characteristic | Axial non-pulsating | Low-shear sanitary flow | Reduced vibration and product damage |
| Gas Handling Tolerance | Moderate multiphase capability | Limited vapor handling | Stable mixed-phase transfer |
| NPSH Requirement | Low | Very Low | Reduced cavitation probability |
| Shaft Sealing Options | Packed gland / mechanical seal | Hygienic mechanical seal | Application-specific sealing |
| Mounting Arrangement | Horizontal skid-mounted | Hygienic base-mounted | Installation flexibility |
| Drive Compatibility | Direct / gearbox / VFD | Direct / VFD | Variable speed adaptability |
| Duty Classification | Continuous industrial duty | Continuous sanitary duty | Long-duration operational stability |
The TSMP Series is engineered in separate hygienic and industrial configurations because sanitary process systems and heavy-duty industrial environments require fundamentally different mechanical priorities.
| Configuration Factor | Hygienic TSMP Setup | Industrial TSMP Setup |
|---|---|---|
| Primary Process Environment | Food, Pharma, Beverage, Cosmetics | Refinery, Marine, Chemical, Thermal Systems |
| Pump Casing Material | SS316L | Cast Iron / Carbon Steel |
| Internal Screw Finish | Electropolished sanitary finish | Hardened wear-resistant finish |
| Elastomer Standard | FDA / food-grade | Industrial chemical-resistant |
| Surface Roughness | Low Ra hygienic finish | Industrial-duty finish |
| Seal Type | Hygienic balanced mechanical seal | Packed gland / cartridge seal |
| Cleaning Method | CIP/SIP compatible | Manual / process flush cleaning |
| Operating Focus | Product protection | Process endurance |
| Product Sensitivity | Delicate sanitary media | Abrasive or thermal media |
| Thermal Priority | Product stability | Temperature endurance |
| Corrosion Requirement | Hygienic corrosion resistance | Industrial wear resistance |
| Installation Style | Hygienic skid system | Heavy-duty industrial skid |
Material selection directly affects operational life, corrosion resistance, thermal stability, and compatibility with abrasive or chemically aggressive fluids. The TSMP Series supports multiple material configurations depending on process environment and transferred media characteristics.
| Pump Component | Hygienic Process Configuration | Industrial Process Configuration | Functional Engineering Purpose |
|---|---|---|---|
| Pump Housing | SS316L stainless steel | ASTM A216 WCB cast steel | Pressure containment |
| Twin Screws | Precision-machined SS316L | Hardened alloy steel | Controlled fluid displacement |
| Shaft Material | SS316 | EN24 heat-treated steel | Torque transmission |
| Timing Gear Assembly | Hardened stainless gear set | Alloy steel timing gears | Screw synchronization |
| Bearing Housing | Hygienic enclosed housing | Heavy-duty roller bearing housing | Rotational load stability |
| Shaft Sealing Chamber | Sanitary polished chamber | Industrial reinforced chamber | Leakage control |
| Elastomer Material | EPDM / Viton FDA grade | Nitrile / Viton industrial grade | C hemical sealing compatibility |
| External Coating | Hygienic stainless finish | Industrial anti-corrosion coating | Environmental durability |
Multiphase transfer systems create significant hydraulic instability for conventional pumps because mixed-density fluids generate irregular pressure zones, vapor formation, and fluctuating suction behavior. The TSMP Series is engineered to maintain controlled axial flow under these unstable operating conditions.
Its progressive cavity movement allows smoother transfer of oil-gas mixtures, vapor-containing fluids, unstable refinery streams, and aerated process liquids without severe pulsation or volumetric collapse. The low NPSH requirement further improves suction stability during partial vapor formation and long suction-line conditions.
This operational flexibility makes the TSMP Series suitable for refinery upset systems, marine unloading operations, chemical process circulation, and variable-density industrial transfer applications.
| Multiphase Challenge | Conventional Pump Issue | TSMP Series Response |
|---|---|---|
| Entrained Gas | Cavitation and flow interruption | Stable volumetric transfer |
| Vapor Formation | Loss of suction efficiency | Improved axial movement |
| Density Fluctuation | Pressure instability | Controlled displacement stability |
| Long Suction Pipelines | Suction collapse | Low NPSH operation |
| Startup Viscosity Spikes | Hydraulic overload | Adaptive screw displacement |
| Variable Process Temperature | Flow inconsistency | Stable thermal handling |
| Mixed-Phase Hydrocarbon Transfer | Pulsation and instability | Progressive cavity flow |
| Aerated Process Media | Reduced pump efficiency | Controlled gas-liquid movement |
| Performance Parameter | TSMP Series | TSO Series | Gear Pump | Centrifugal Pump |
|---|---|---|---|---|
| Variable Viscosity Adaptability | Excellent | Moderate | Low | Poor |
| Multiphase Capability | Excellent | Moderate | Poor | Poor |
| Entrained Gas Handling | High | Moderate | Low | Poor |
| Solids Compatibility | Good | Limited | Poor | Very Poor |
| Low-Shear Transfer | Excellent | Moderate | Poor | Moderate |
| Self-Priming Capability | Strong | Strong | Moderate | Weak |
| Flow Pulsation | Very Low | Low | Moderate | High |
| Process Adaptability | Excellent | Moderate | Low | Moderate |
| Startup Stability | Excellent | Moderate | Low | Weak |
| Thermal Fluid Capability | High | Very High | Moderate | Moderate |
| Refinery Suitability | High | Very High | Moderate | Limited |
| Hygienic Capability | High | Limited | Low | Moderate |
The TSMP Series supports flexible industrial integration across refinery, hygienic processing, marine, and chemical transfer systems. Its architecture allows integration into both compact sanitary process systems and heavy-duty industrial transfer skids.
Variable Frequency Drive compatibility enables adaptive speed control during changing viscosity conditions and startup-load fluctuation. This improves process stability while reducing hydraulic shock during transitional operating cycles.
The TSMP Series is designed for long-duration industrial operation under continuously changing process conditions. Its synchronized non-contact screw geometry minimizes internal wear while maintaining stable volumetric efficiency over extended operational cycles.
Heavy-duty bearing systems improve rotational stability under fluctuating load conditions, while accessible sealing arrangements simplify maintenance intervention and reduce downtime during servicing procedures.
| Reliability Factor | TSMP Engineering Advantage | Operational Benefit |
|---|---|---|
| Non-Contact Screw Design | Reduced internal wear | Longer service life |
| Stable Internal Clearance | Improved volumetric consistency | Better efficiency retention |
| Heavy-Duty Bearings | High rotational stability | Reduced downtime |
| Low Pulsation Flow | Reduced pipeline vibration | Lower system stress |
| Modular Seal Arrangement | Easier servicing | Faster maintenance turnaround |
| Continuous-Duty Design | Long operational cycles | Reduced shutdown frequency |
| Adaptive Hydraulic Stability | Handles changing process conditions | Improved process continuity |
| Reduced Cavitation Risk | Low NPSH geometry | Higher suction reliability |
The TSMP Series is widely used in industries requiring adaptive fluid transfer capability under unstable operating conditions where viscosity, density, temperature, and solids concentration may fluctuate during operation.
The TSMP Series can handle fluids ranging from low-viscosity liquids up to approximately 200,000 cSt depending on operating speed and configuration.
Yes. Its synchronized non-contact screw geometry allows smooth axial movement of suspended particles without excessive crushing or internal scoring.
Yes. It is specifically engineered for mixed-density fluids, entrained gas systems, and unstable suction conditions.
Food processing, pharmaceutical, cosmetic, and sanitary beverage industries commonly use SS316L hygienic configurations.
Yes. The low NPSH design helps reduce cavitation risk in fluctuating suction environments.
Yes. Variable Frequency Drive compatibility allows adaptive speed control based on process viscosity and operational demand.
Provide viscosity range, operating temperature, solids concentration, pressure requirement, suction conditions, and installation layout to receive tailored pump selection guidance.
